1977 Cessna R172K (Hawk XP)

N7390K

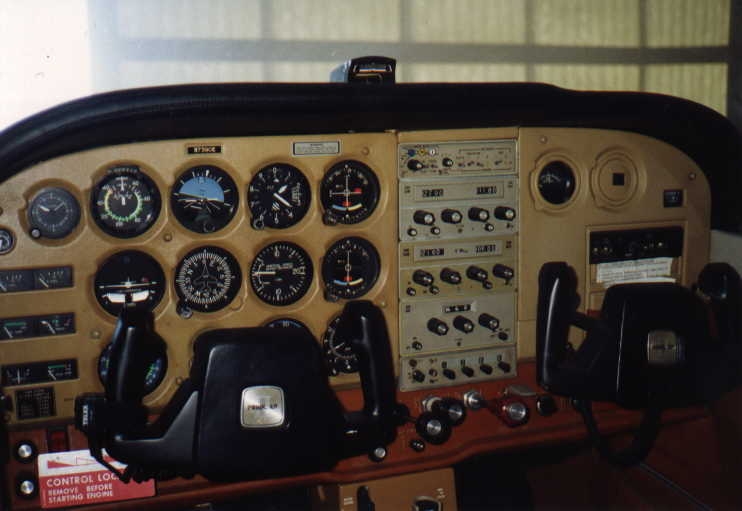

Panel
ADF Antenna
Roof Panel

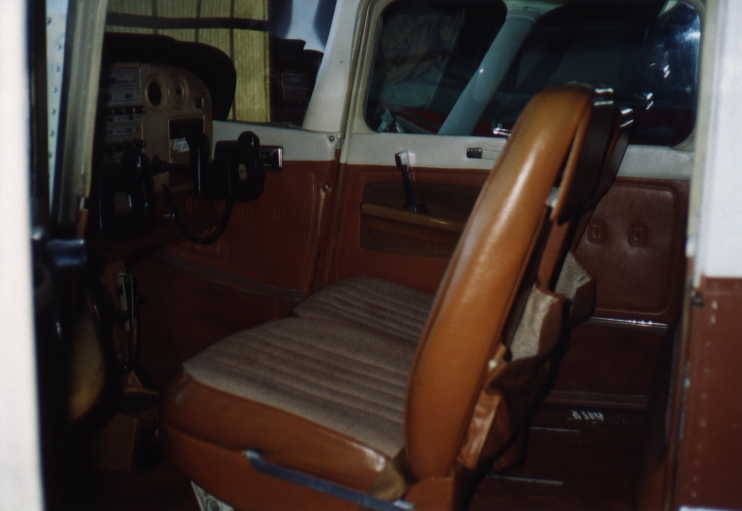

Pilot Seat
Pilot Door
Baggage/Fuel
Pilot Empennage
Copilot Empennage
Aux Fuel Cap
Copilot Door
Copilot Door
Lower Panel
Rear Seat
Copilot Wing
Copilot Wing
Copilot Front
Copilot Front
Copilot Front
Front
Engine/Prop
Pilot Front
Pilot Window
Pilot Front
Pilot Wing
Pilot Wing


GENERAL SPECIFICATIONS

PERFORMANCE SPECIFICATIONS
Engine Cont. IO-360-K
Displacement 360 cu. in.
Min. Octane Fuel 100
No. Cylinders 6
TBO 1500 hrs
HP 195
Propeller McCauley
Type C/S
Prop Specs 76 in.
Landing Gear Tri-gear
Nose Tire 5.00 x 5
Mains 6.00 x 6
Ave. Empty Wt. 1549 lbs.
Ave. Useful Load 1001 lbs.
Baggage Capacity 200 lbs.
Total Fuel, Std. 52 gals.
Total Fuel, Long N/A
Wingspan 36 ft
Length 27 ft. 2 in.
Height 8 ft. 9-1/2 in.
Wing Area 174 sq. ft.
Wing Loading 14.7 lbs/sq.ft.
Power Loading 13.1 lbs./hp
Main Gear Track 78ft. 3-1/2 in.
Doors 2
Seats 4
Cabin Width 39-1/2 in.
Top Speed 133 kts
Cruise Info.
Optimum
    Speed
 130 kts
    Range
 480 nm
    Endurance
 3.7 hrs
Economy
    Speed
 94 mph
    Range
 575 nm
    Endurance
 6.1 hrs
Stall, Clean 53 kts
Stall, Flaps 46 kts
Take-off Roll 800 ft
Take-off 50 ft. 1360 ft.
Climb Best Rate 870 fpm
Speed, Best ROC 81 kts
Speed, Best Angle 59 kts
Approach Speed, Clean 65 mph
Approach Speed, Flaps 60 mph
Landing, 50 ft. 1270 ft
Landing Roll 620 ft
Service Ceiling 17000 ft


SPEEDS

OPERATION SPECIFICATIONS
Do Not Exceed 161-163 kts
Maneuvering 105 kts
Stall, Clean 53 kts
Stall, Flaps 46 kts
Flap Range 46-85 kts
Normal Climb 85-95 kts
Best ROC 81 kts
Best AOC 59 kts
Approach, Clean 65 kts
Approach, Flaps 60 kts
Gear Down N/A
Best Glide 75 kts
Fuel
    Min. Oct.
 100
    Capacity, Std.
 52 gals.
    Capacity, L/R
 68 gals.
    Min. Oct., Auto
 N/A
Oil Capacity 8 qts.
Operating Min. 6 qts.
Viscosity, Summer, SAE 50 wt.
Viscosity, Winter, SAE 30 wt.
Tire Pressure
    Nose Tire
 45 psi
    Main Tire
 38 psi
Electrical 12 V
Shock Strut 45 psi
Oxygen N/A

Cessna's performance specs
